Utterly reliable. Our compact gas burners.

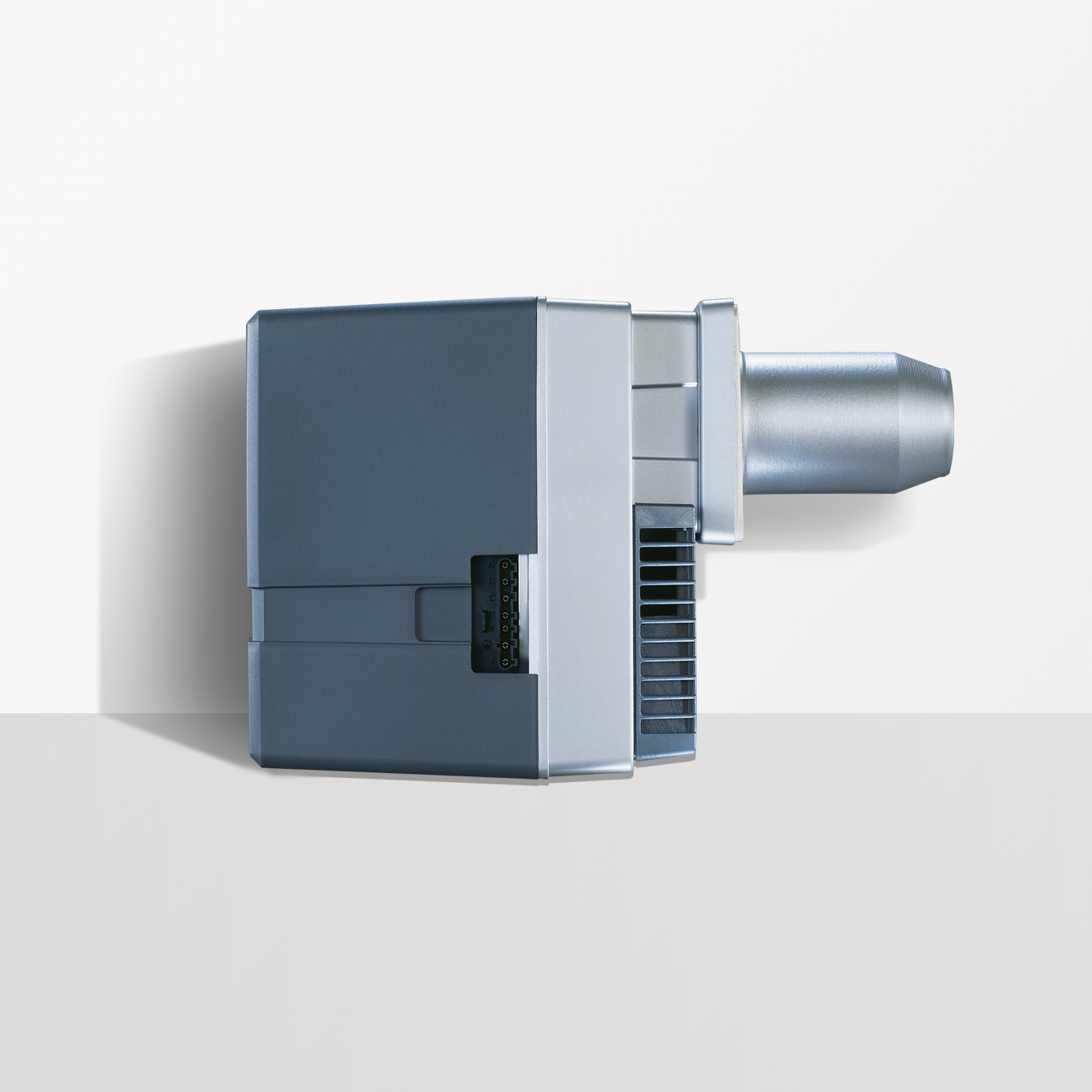

The Weishaupt WG5–40 compact gas burners (12.5 to 550 kW)

The Weishaupt WG5–WG40 burners cover a considerable capacity range up to 550 kW. These gas burners represent the ultimate in reliability and safety – of particular importance to schools, hospitals, bakeries, and paintshops, but equally of benefit to all applications, including residential buildings large or small.

Energy saving
Exemplary efficiency

Weishaupt is setting new benchmarks for compact burners by offering VSD and O2 trim as options. The features are available on modulating versions of the higher-rated burners. The investment cost pays for itself in a relatively short period of time.

Excellent emissions

Low-NOx technology has been standard on Weishaupt W-series forced-draught gas burners for a long time now. Clean combustion and the lowest possible NOx figures have always been a focus, but – and this is crucial – key Weishaupt characteristics, such as reliable start behaviour, for example, or the same inspection intervals, also had to be maintained.

Benefits
Universal application

The special matching of the flame geometry to the heat generator's combustion chamber is every Weishaupt burner's recipe for success. It allows customised use on different heat generators, such as air heaters or steam boilers.

Quiet operation

The air inlet housing is sound attenuated, which results in a noticible reduction in noise emissions .

Perfect electrics

The combustion manager 's integrated connection console and its coded and numerically labelled plugs leave no room for doubt. They enable components to be removed quickly, reduce maintenance work, and prevent connection errors. Simple and perfect!

System solution
Futureproof

The W-FM25 digital combustion manager  with its optional field bus module offers the possibility of communication with other systems, enabling the burner to be integrated with building management and other automation systems. Industry standards, like remote control, monitoring, and fault diagnosis, are well understood by Weishaupt.

WG5–40 compact gas burners 12.5 to 550 kW

Type Rating (kW)
WG5/1 12 - 50
WG10/0 12 - 50
WG10/1 25 - 110
WG20/1 35 - 200
WG30/1 40 - 350
WG40/1 55 - 550

Information. Detailed, comprehensive, interesting.

Informationsmaterial Magazin

WG gas burners: The compact ones.

All Weishaupt forced-draught gas burners are Low NOx by design. A special mixing assembly  generates intensive internal flue gas recirculation, enabling exceptionally good emissions  figures.

Digital combustion manager with plug console

  • Coded and numbered plugs prevent incorrect connections
Opener
Low-NOx mixing assembly

  • To reduce the emission of nitrogen oxides
Opener
Compact gas valve train

  • With pressure regulator and two integral gas valves for maximum safety
Opener

Combustion manager for compact burners.

The larger compact burners have all the latest technology. Available with optional VSD and O2 trim, they offer even greater reliability and efficiency.

Expansion modules

  • Optional module available for analogue inputs/outputs or for digital interfacing
Opener
External components: O2 module and O2 probe

  • For combustion regulation
  • The system increases system safety and efficiency and pays for itself in a short amount of time
Opener
