All-round powerhouse up to 32 000 kW. The powerful high-capacity burner.

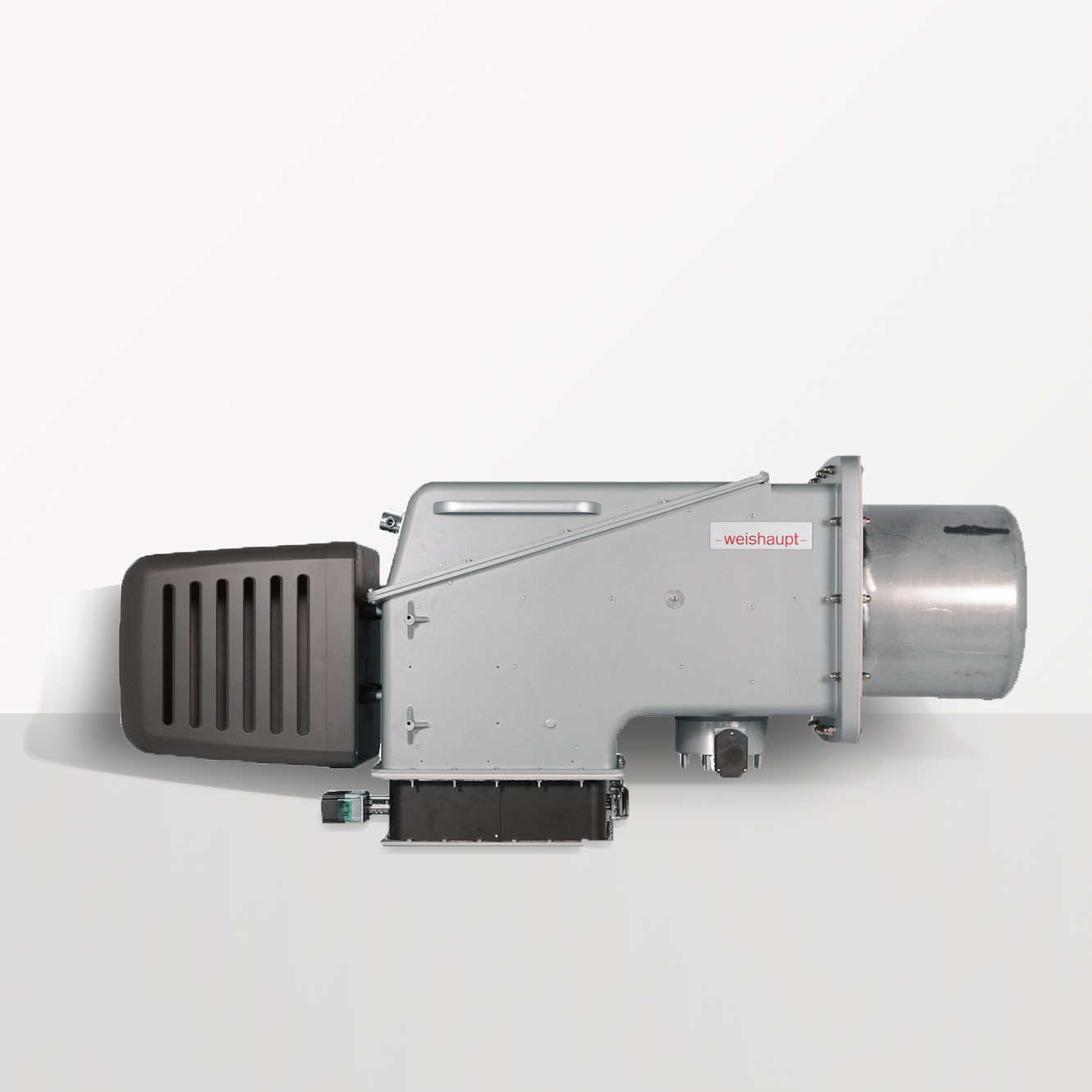

The Weishaupt WK-series burners (up to 32 000 kW)

The WK-series burners are Weishaupt's most powerful burners of all. They were designed especially for hard industrial use, with capacities of up to 32 000 kW. The modular concept with an external fan facilitates a specific matching to all operating conditions. WK-series burners are available as gas, oil, and dual-fuel units.

Benefits
Digital combustion management

Digital combustion management, which is included in this range of burners as standard, provides for the economical regulation of gas and oil and simplifies the operation and maintenance of the burner. It also offers the possibility of communication with various monitoring and control systems, up to and including integration into complete building management systems.

Insulated burner housing

The internal insulation reduces the noise level and minimises the surface temperature of the housing when the burner is operating with preheated combustion air . The burners can be operated with combustion air  temperatures up to 250 °C.

Modular concept

The fan, control panel, pump station, and preheater station are all sized independently of the burner. This concept offers a large degree of freedom, for example when faced with particularly difficult conditions, such as dust or thermal load.

Applications
Executions to meet all needs

Weishaupt WK-series burners are available in a range of executions to suit different applications. Various mixing assemblies are available to meet special emissions  limit requirements. There are also “swirlflame” executions with swirled combustion air  for extremely short combustion chambers.

Full range of fuels

Suitable for natural gas E, natural gas LL, LPG, gas oil, HFO, and other fuels .

That's reliability

Reliable service and support is available to customers through Weishaupt's comprehensive network. This ensures that systems with a Weishaupt burner always perform reliably.

Technology
multiflam®

Weishaupt's patented multiflam® technology enables large combustion plant to meet very low emission limits.

Key to the system is a special mixing assembly  that establishes an internal flue gas recirculation. This cools the flame and reduces the formation of nitrogen oxides. The NOx levels that can be achieved are comparable to those of compact burners.

The various Weishaupt burners that are available in multiflam® execution cover a range of capacities extending from 100 kW to 23 000 kW.

Flue gas recirculation

Weishaupt's 4LN-version burners meet the world's most stringent emissions  limits. A 4LN-version burner is equipped with a flue gas recirculation system that has its control components integrated into the burner.

Gaseous fuels  contain almost no sulphur, and so their flue gases mostly comprise carbon dioxide  (CO₂ ), steam (H₂O), and nitrogen (N₂). This is beneficial to the flue gas recirculation, since there is no ash or soot to contaminate the system.

Special adaptations of the mixing assembly  together with the W-FM200 digital combustion manager  ensure a high degree of flame stability and reliable operational behaviour.

Weishaupt WK-series burners (up to 32.000 kW)

Type Rating (kW)
WKG70/1 1 000 - 10 000
WKG70/3 1 300 - 13 000
WKG80/1 1 700 - 17 000
WKG80/2 2 200 - 23 000
Type Rating (kW)
WKG70/0 750 - 7 000
WKG70/1 1 000 - 10 000
WKG70/3 1 100 - 13 000
WKG80/1 1 800 - 17 000
WKG80/2 2 200 - 23 000
Type Rating (kW)
WKG70/1 900 - 7 000
WKG70/2 1 100 - 12 000
Type Rating (kW)
WKG70/1 1 100 - 7 700
WKG70/3 1 400 - 12 000
WKG80/3 2 200 - 22 000
Type Rating (kW)
WKG70/1 1 000 - 8 000
WKG70/2 1 300 - 12 000
WKG80/4 2 200 - 22 000
WKG80/5 2 700 - 27 000
WKG80/6 3 200 - 32 000
Type Rating (kW)
WKL70/1 1 200 - 7 700
WKL70/3 1 800 - 12 000
WKL80/3 3 200 - 22 000
Type Rating (kW)
WKL70/1 1 800 - 8 000
WKL70/2 2 500 - 12 000
WKL80/3 3 200 - 19 000
Type Rating (kW)
WKMS70/1 1 800 - 7 700
WKMS70/3 2 150 - 12 000
WKMS80/3 3 800 - 22 000
Type Rating (kW)
WKMS70/1 1 800 - 8 000
WKMS70/2 2 500 - 12 000
WKMS80/3 3 200 - 19 000
Type Rating (kW)
WKGL70/1 1 000 - 10 000
WKGL70/3 2 020 - 13 000
WKGL80/1 1 700 - 17 000
WKGL80/2 2 200 - 23 000
Type Rating (kW)
WKGL70/0 750 - 7 000
WKGL70/1 1 000 - 10 000
WKGL70/3 1 100 - 13 000
WKGL80/1 1 800 - 17 000
Type Rating (kW)
WKGL70/1 900 - 7 000
WKGL70/2 1 100 - 12 000
Type Rating (kW)
WKGL70/1 1 100 - 8 000
WKGL70/3 1 400 - 12 000
WKGL80/3 2 200 - 22 000
Type Rating (kW)
WKGL70/1 1 000 - 8 000
WKGL70/2 1 300 - 12 000
WKGL80/3 2 500 - 19 000
Type Rating (kW)
WKGMS70/1 1 100 - 7 700
WKGMS70/3 1 400 - 12 000
WKGMS80/3 2 200 - 22 000
Type Rating (kW)
WKGMS70/1 1 000 - 8 000
WKGMS70/2 1 300 - 12 000
WKGMS80/3 2 500 - 19 000
Type Rating (kW)
WKG40/1 200 - 1 200
WKG50/1 400 - 2 800
WKG70/1 1 000 - 10 400
WKG70/3 1 300 - 10 400
WKG80/1 1 700 - 13 600
WKG80/2 2 200 - 18 400
Type Rating (kW)
WKG40/2 300 - 2 200
WKG50/1 450 - 2 800
WKG50/2 500 - 4 000
WKG70/0 750 - 5 600
WKG70/1 1 000 - 8 000
WKG70/3 1 100 - 10 400
WKG80/1 1 800 - 13 600
WKG80/2 2 200 - 18 400
Type Rating (kW)
WKG40/2 500 - 2 500
WKG50/1 600 - 3 000
WKG50/2 800 - 4 800
WKG70/1 900 - 5 600
WKG70/2 1 100 - 9 600
Type Rating (kW)
WKG50/1 600 - 3 200
WKG50/2 800 - 5 000
WKG70/1 1 100 - 6 100
WKG70/3 1 400 - 9 600
WKG80/3 2 200 - 17 600
Type Rating (kW)
WKG40/1 300 - 1 800
WKG40/2 400 - 2 500
WKG50/1 600 - 3 200
WKG50/2 800 - 5 000
Type Rating (kW)
WKG70/1 1 000 - 6 400
WKG70/2 1 300 - 9 600
WKG80/4 2 200 - 17 600
WKG80/5 2 700 - 21 600
WKG80/6 3 200 - 25 600
Type Rating (kW)
WKL40/1 450 - 1 800
WKL40/2 650 - 2 500
WKL50/1 712 - 3 200
WKL50/2 1 125 - 5 000
WKL70/1 1 200 - 6 100
WKL70/3 1 800 - 9 600
WKL80/3 3 200 - 17 600
Type Rating (kW)
WKL70/1 1 800 - 6 400
WKL70/2 2 500 - 9 600
WKL80/3 3 200 - 15 200
Type Rating (kW)
WKMS40/1 550 - 1 800
WKMS40/2 750 - 2 500
WKMS50/1 1 012 - 3 200
WKMS50/2 1 700 - 5 000
WKMS70/1 1 800 - 6 100
WKMS70/3 2 150 - 9 600
WKMS80/3 3 200 - 17 600
Type Rating (kW)
WKMS70/1 1 800 - 6 400
WKMS70/2 2 500 - 9 600
WKMS80/3 3 200 - 15 200
Type Rating (kW)
WKGL50/1 400 - 2 800
WKGL70/1 1 000 - 10 000
WKGL70/3 1 300 - 10 400
WKGL80/1 1 700 - 13 600
WKGL80/2 18 400 - 23 000
Type Rating (kW)
WKGL40/2 300 - 1 760
WKGL50/1 450 - 2 800
WKGL50/2 500 - 4 000
WKGL70/0 750 - 5 600
WKGL70/1 1 000 - 8 000
WKGL70/3 1 100 - 10 400
WKGL80/1 1 800 - 13 600
Type Rating (kW)
WKGL50/1 600 - 3 000
WKGL50/2 800 - 4 800
WKGL70/1 900 - 5 600
WKGL70/2 1 100 - 9 600
Type Rating (kW)
WKGL50/1 600 - 4 000
WKGL50/2 800 - 5 000
WKGL70/1 1 100 - 6 100
WKGL70/3 1 400 - 9 600
WKGL80/3 2 200 - 17 600
Type Rating (kW)
WKGL40/1 300 - 1 800
WKGL40/2 400 - 2 500
WKGL50/1 600 - 3 200
WKGL50/2 800 - 5 000
Type Rating (kW)
WKGL70/1 1 000 - 6 400
WKGL70/2 1 300 - 9 600
WKGL80/3 2 500 - 15 200
Type Rating (kW)
WKGMS50/1 600 - 3 200
WKGMS50/2 800 - 5 000
WKGMS70/1 1 100 - 6 100
WKGMS70/3 1 400 - 9 600
WKGMS80/3 2 200 - 17 600
Type Rating (kW)
WKGMS40/1 300 - 1 800
WKGMS40/2 400 - 2 500
WKGMS50/1 600 - 3 200
WKGMS50/2 800 - 5 000
Type Rating (kW)
WKGMS70/1 1 000 - 6 400
WKGMS70/2 1 300 - 9 600
WKGMS80/3 2 500 - 15 200

Information. Detailed, comprehensive, interesting.

Informationsmaterial Magazin

WK-series duobloc burners: The unfettered ones.

The modular concept makes it all possible. The rating determines the burner size and the heat generator with its additional components determines the combustion air  fan. This way, the optimal solution can always be found.

Separate combustion air fan

  • Precise capacity matching avoids oversizing and unnecessary costs
Opener
Burner pump station

  • Optimal matching to the burner rating and the fuel
Opener
Oil preheater station

  • Electric or medium preheaters can be employed as required. A combination of the two is equally possible.
